TOSIBOX® Lock for Container

最新的TOSIBOX® Lock for Container 有助於在您的工業務聯網裝置實現安全連線。它是以純軟體的方式將您的IPC、HMI、PLC、控制器或其他裝置連線到TOSIBOX®網路，作為安全遠端連線的端點。

用TOSIBOX® Lock for Container在要連接的裝置上執行，透過網際網路、LAN或WAN網路並以高度加密的VPN連線，裝置便能被安全地存取。

主要特點

與任何設備安全連線

  • The patented TOSIBOX® connection method is now available virtually to any device. You can integrate and manage all your devices with your TOSIBOX® products.
  • TOSIBOX® Lock for Container supports Layer 3 VPN tunnels.
  • TOSIBOX® Lock for Container does not limit the number of services or devices you need to manage. You can connect any service over any protocol between any devices.

無需啟動就可預安裝，啟動後立即存取

  • You can create a device that you can sell for other users to activate with TOSIBOX® technology.
  • If you are looking to create a device for yourself to be used within your own IoT ecosystem, you can easily activate TOSIBOX® Lock for Container immediately to get secure remote access to that device or the network of devices behind it.

在系統背景無干擾執行

  • TOSIBOX® Lock for Container does not interfere with the operating system level processes or middleware. It does not need access to system files and doesn’t change any system level settings.

創新空間

  • Developers can innovate with TOSIBOX® technology and create a more flexible infrastructure to enable their ecosystems.
  • TOSIBOX® Lock for Container can run behind NAT and in firewalled networks.
  • VPN throughput is limited only by your network connection.
  • Works with any combination of TOSIBOX® Locks and Keys as well as with any industry 4.0 or IIoT initiative.

TOSIBOX® Lock for Container 技術資料

產品編碼

  • TBLFC1

建議軟體需求

  • Any 64-bit Linux OS supported by Docker software (such as CentOS, Fedora, Ubuntu or Debian) and Docker Engine – Community v19 or later installed and running (www.docker.com)
  • Any 64-bit WindowsOS with WSL2 enabled (Windows Subsystem for Linux v2) and Docker Desktop for Windows v2.1 or later installed and running (www.docker.com)
  • Installation requires sudo or root level user rights

建議系統需求

  • 50 MB RAM
  • 50 MB hard disk space
  • ARM 32-bit or 64-bit, Intel or AMD 64-bit dual core processor
  • Internet connection

安全

  • Patented TOSIBOX® connection method
  • PKI with 4096-bit RSA key
  • Compatible with all TOSIBOX® devices and products
  • Uses remote matching for joining your TOSIBOX® secured network
  • Uses device firewall for security
  • TOSIBOX® software separated from system software

WAN連線特點

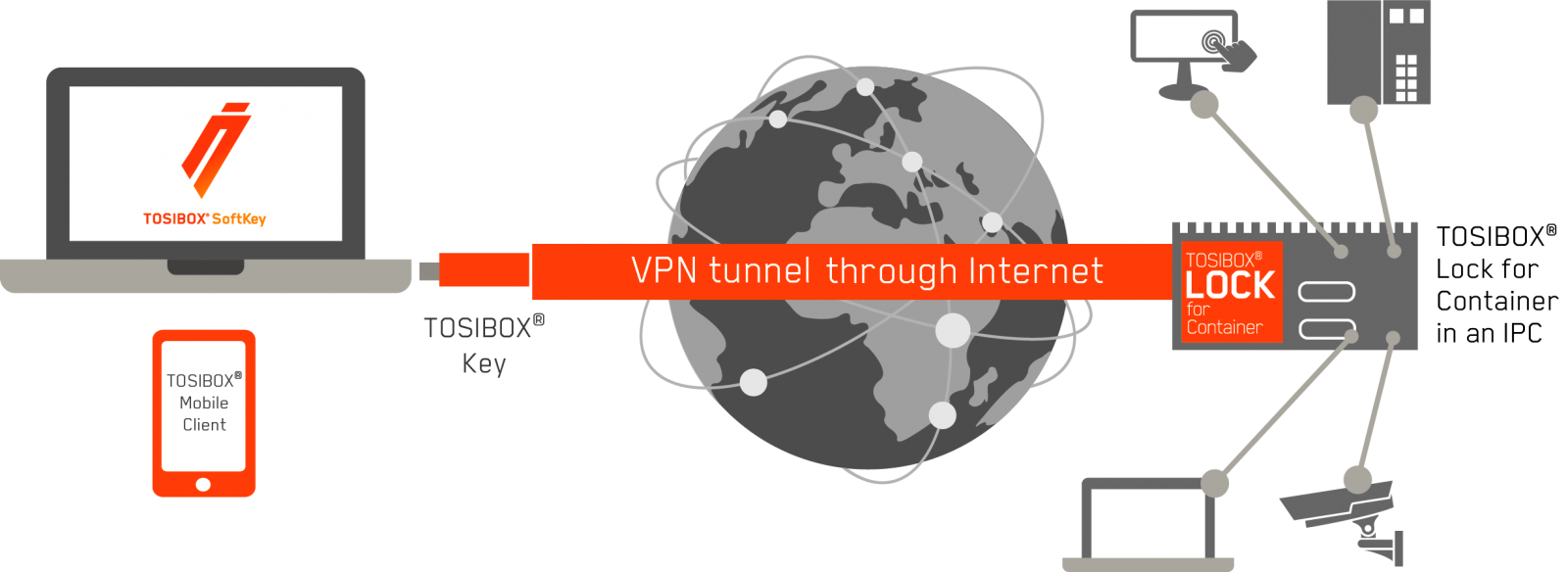

  • Serves as an endpoint for TOSIBOX® secure VPN tunnel
  • VPN connections to/from TOSIBOX® Virtual Central Lock
  • VPN connection from TOSIBOX® Key
  • Works in all Internet connections (operator independent)
  • Supports HTTP proxy servers with and without authentication
  • Works with dynamic, static and private IP addresses
  • Up to 2 concurrent VPN connections
  • VPN throughput limited only by network connection
  • Layer 3 connections
  • LAN access if supported by the device

使用者介面

  • Packed with TOSIBOX® web UI for remote configuration

需開啟防火牆的埠port

  • Outbound TCP: 80, 443, 8000, 57051
  • Outbound UDP: random, 1-65535
  • Inbound: none

產品系列比較

下載 Lock for Container
