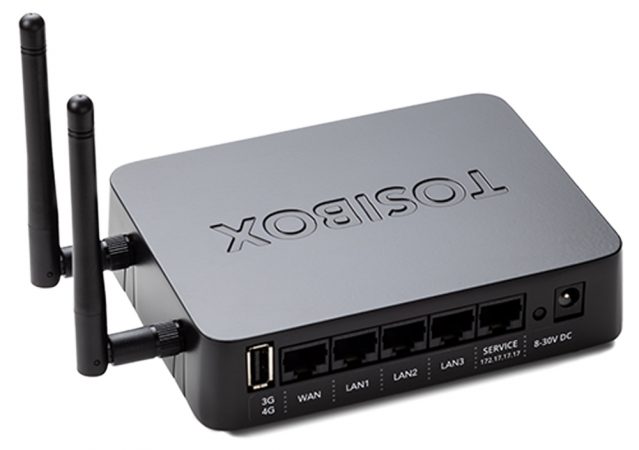

TOSIBOX® Lock 150

TOSIBOX® Lock 150是一台具有防火牆和簡單Plug &Go連線功能的工業路由器，被用作安全遠端連線的端點。將IoT裝置連接至Lock，透過任何一種網際網路方式連線，即可以加密VPN連線來安全地存取IoT裝置。

TOSIBOX® Lock 150與所有TOSIBOX® 產品相容。模組化的產品使網路擴展變得容易和快速。

連線方式

主要特點

  • 專利 TOSIBOX® Plug & Go™連線方式-在不到5分鐘的時間讓您開箱即用，且不用軟體安裝、網路設定或特殊IT技能。
  • 友善NAT和防火牆
  • VPN流量最高10M bps，裝置之間用端到端加密。
  • 以業界最高安全等級執行 – 詳如”Tosibox安全中心“。
  • 最多10個VPN連線
  • 檢測與專利安全
  • TosiOnline™自動連線功能
  • 精巧體積便於狹小的空間

LOCK 150 技術資料

接口

  • 1 x USB 2.0, type A
  • 1 x RJ-45 WAN connection, 10/100 Mbit/s, auto-negotiation (MDI / MDI-X)
  • 3 x RJ-45 LAN connection, 10/100 Mbit/s, auto-negotiation (MDI / MDI-X)
  • 1 x RJ-45 Service connection, 10/100 Mbit/s, auto-negotiation (MDI / MDI-X)

連接

  • 10-30V DC +-10% (reverse polarity protected)
  • 2 x Wireless network antenna connector, RP-SMA
  • DIN rail attachment (bottom), angle bracket available as an accessory (TBMBD1)

WAN連線特點

  • Independent of operating systems
  • Works in all Internet connections (operator independent)
  • Supports HTTP proxy servers with and without authentication
  • Firewall friendly
  • Works with dynamic, static and private IP addresses
  • Built-in firewall, NAT
  • Up to 10 concurrent VPN connections
  • VPN throughput up to 10 Mbit/s

行動網路連線特點

  • Supported USB modems: TOSIBOX® 4G modem, TB4GM (Huawei E3372), TB3GM2M (Huawei MS2131)
  • TosiOnline™ Automatic network recovery that recovers from most mobile operator and modem problems

WLAN

  • IEEE 802.11 b/g/n, max. 150 Mbps
  • WEP, WPA-PSK, WPA2-PSK, WPA-PSK/WPA2-PSK Mixed encryption
  • Frequency 2.412 – 2.462 GHz, 11 channels
  • Output power 20 dBm max

實體特性

  • 132 mm x 99 mm x 35.5 mm / 5.2″ x 3.9″ x 1.4″ (L x W x H)
  • Weight 593 g / 1.31 lbs (net weight article)
  • Cast aluminum casing
  • Operating temperature: -20 °C … +55 °C / -4 °F … 131 °F
  • Operating humidity: 20 – 80% RH, non-condensing
  • Storage temperature -40 °C … +70 °C / -40 °F … 158 °F
  • Protection class IP20

內附配件

  • 2 x WLAN antennas, 2 dBi
  • AC Adapter (EU, UK, AU or US power socket)
  • DC input plug
  • DIN rail mounting bracket

Lock 150 電源供應器

  • Model: ATS024T-W240V
  • Input: 100-240 V AC
  • Frequency: 50-60 Hz
  • Output: 24 V / 1 A / max 24 W
  • Operating temperature: -20 °C … +70 °C / -4°F… 158 °F
  • Operating humidity: 20% – 80% RH
  • Storage temperature: -20 °C … +80 °C / -4°F… 176 °F
  • Storage humidity: 10% – 90% RH

多國認證

  • CE, UL, FCC, ISED

產品編碼

  • TBL15
