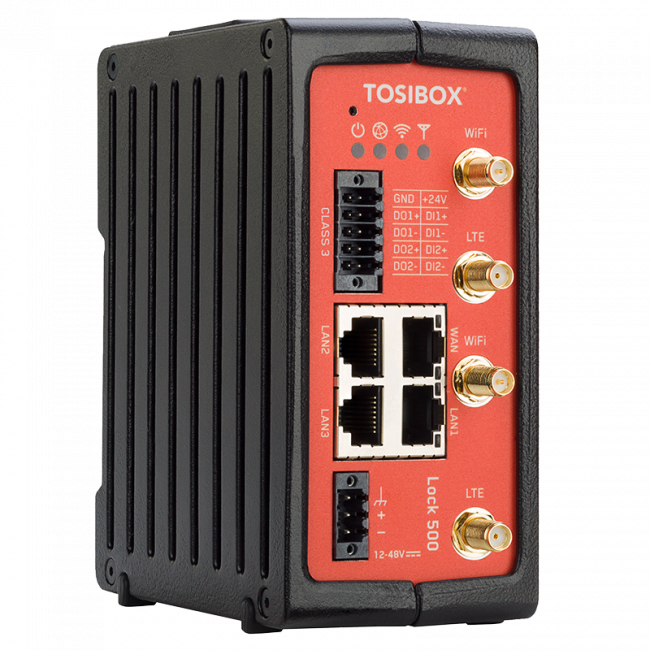

TOSIBOX® Lock 500

TOSIBOX® Lock 150是一款高階的連線裝置，為客戶管理營運和建立新的物聯網(IoT)解決方案帶來了前所未有的可能性。Lock 500 是要求苛刻的工業環境的理想選擇，並為保全業和辦公網絡領域開闢了新的機遇。

Lock 500 與所有現有的 TOSIBOX® 產品兼容。 產品的模組化使網絡的擴展變得容易和快速。

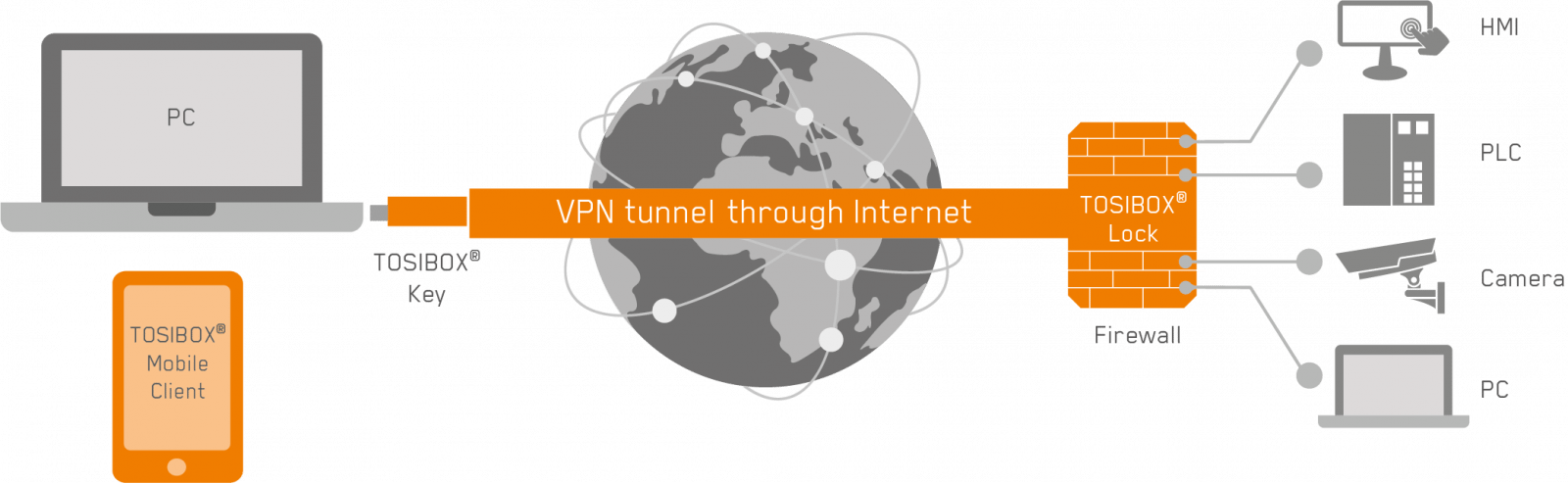

連線方式

Lock 500 主要特點

高效能

  • 超大VPN流量用於數據消耗應用，Key ⇔ Lock、Lock ⇔ Lock 或 Lock⇔(virtual) Central Lock之間的點對點加密連線。
  • 最多50個VPN同時連線。

可靠性

  • 內建WiFi作為現場無線設備的連接網際網路，或是存取點(AP模式)。
  • 內件LTE modem(選配)，依全球不同區域具有三種的modem頻段。
  • 雙SIM卡插槽備援，實現更可靠的連線。
  • TosiOnline™自動連線功能。

工業外型

  • 2/2數位I/O用於控制與監視Lock狀態和發送I/O事件的SMS簡訊。

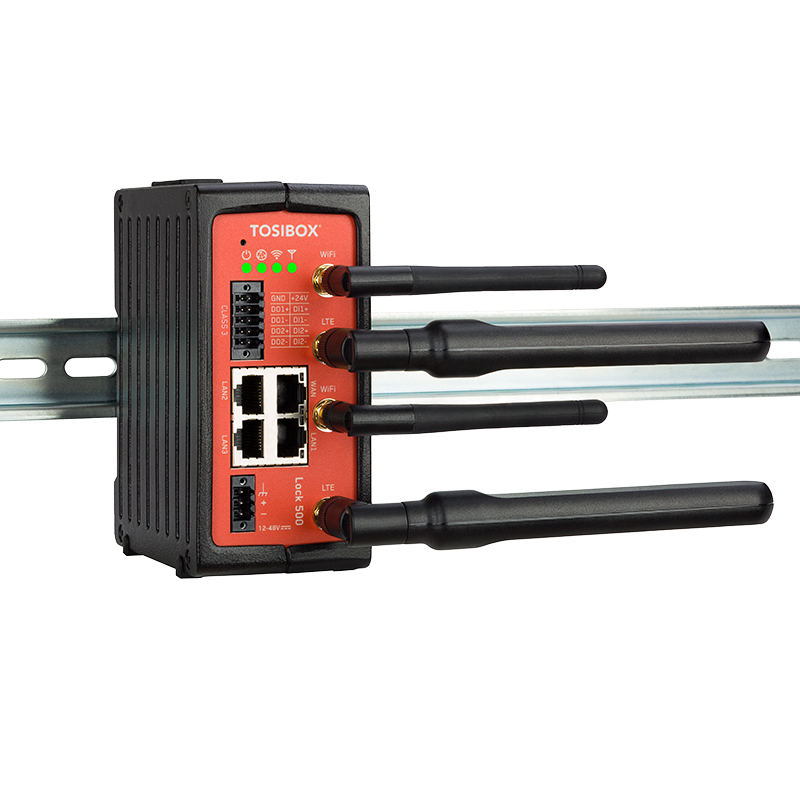

  • 工業設計：堅固且無風扇的外殼、內建的DIN 導軌支架和工業螺絲旋緊式DC電源連接頭。

工業界最高安全等級

LOCK 500 技術資料

接口

  • 1 x USB 2.0, type A
  • 1 x RJ-45 WAN connection, 10/100 Mbit/s, auto-negotiation (MDI / MDI-X)
  • 3 x RJ-45 LAN connection, 10/100 Mbit/s, auto-negotiation (MDI / MDI-X)
  • LAN3 can be assigned as Service connection, 10/100 Mbit/s, auto-negotiation (MDI / MDI-X)
  • Ethernet port isolation: 1500 Vrms 1 minute (when connected to protective ground)

連接

  • Independent of operating systems
  • Works in all Internet connections (operator independent)
  • Supports HTTP proxy servers with and without authentication
  • Firewall friendly
  • Works with dynamic, static and private IP addresses
  • Built-in firewall, NAT
  • Up to 50 concurrent VPN connections
  • VPN throughput up to 70 Mbit/s

WAN連線特點

  • Independent of operating systems
  • Works in all Internet connections (operator independent)
  • Supports HTTP proxy servers with and without authentication
  • Firewall friendly
  • Works with dynamic, static and private IP addresses
  • Built-in firewall, NAT

行動網路連線特點

  • Region: EMEA (TBL5iA*), APAC (TBL5iB*), US/CAN (TBL5iC*)
  • LTE Cat-6
  • Up to 300 Mbps DL, 50 Mbps UL
  • Frequency Bands TBL5iA* (4G LTE): B1, B2, B3, B4, B5, B7, B12, B13, B20, B25, B26, B29, B30, B41
  • Frequency Bands TBL5iB* (4G LTE): B1, B3, B5, B7, B8, B18, B19, B21, B28, B38, B39, B40, B41
  • Frequency Bands TBL5iC* (4G LTE): B1, B2, B3, B4, B5, B7, B12, B13, B20, B25, B26, B29, B41
  • Dual SIM
  • TosiOnline™ Automatic network recovery that recovers from most mobile operator and modem problems

WLAN

  • IEEE 802.11b/g/n, max. 150 Mbps
  • WEP, WPA-PSK, WPA2-PSK, WPA-PSK/WPA2-PSK Mixed, WPA-EAP, WPA2-EAP
  • TKIP/AES encryption
  • Frequency 2.412 – 2.462 GHz, 11 channels
  • Output power 20 dBm max

I/O規格

  • 2 x digital inputs, galvanic isolation, current limited to <5mA, Voltage 0 – 32V nom.
  • >12V is interpreted as ‘1’, 0-5V is ‘0’
  • 2 x digital outputs, 24V DC, 50 mA current shared by the outputs and 24V DC out
  • 1 x 24V DC out, 50 mA current shared by 24V DC out, output 1 and output 2
  • Software Configurable I/O state

實體特性

  • 110 mm x 58 mm x 127 mm / 4.33” x 2.28” x 5.0” (L x W x H)
  • TBL5*: Weight 495 g / 1.09 lbs (net weight article)
  • TBL5i*: Weight 505 g / 1.11 lbs (net weight article)
  • Operating temperature -20 °C … +60 °C / -4 °F … +140 °F
  • Storage temperature -40 °C … +70 °C / -40 °F … +158 °F
  • Protection class IP20

內附配件

  • RJ-45 Cat5e ethernet cable
  • 2 x WiFi antennas, 2 dBi
  • I/O connector plug
  • Power connector plug
  • TBL5*PS: AC adapter ( EU, UK, AU and US power socket)
  • TBL5*PS: DC feed cable
  • TBL5iA*: EMEA Modem
  • TBL5iB*: APAC Modem
  • TBL5iC*: US/CAN Modem
  • TBL5i*: 2 x LTE antennas

Lock 500 電源供應器

  • Model:. ATS024T-W240V
  • Input: 100-240 V AC
  • Frequency: 50-60 Hz
  • Output: 24 V / 1 A / max 24 W
  • Operating temperature: -20 °C … +70 °C / -4°F… 158 °F
  • Operating humidity: 20% – 80% RH
  • Storage temperature: -20 °C … +80 °C / -4°F… 176 °F
  • Storage humidity: 10% – 90% RH

多國認證

  • CE, UL, FCC, ISED, PTCRB, AT&T

產品編碼

  • TBL5, TBL5PS, TBL5iA, TBL5iAPS, TBL5iB, TBL5iBPS, TBL5iC, TBL5iCPS
  • 詳細編碼
