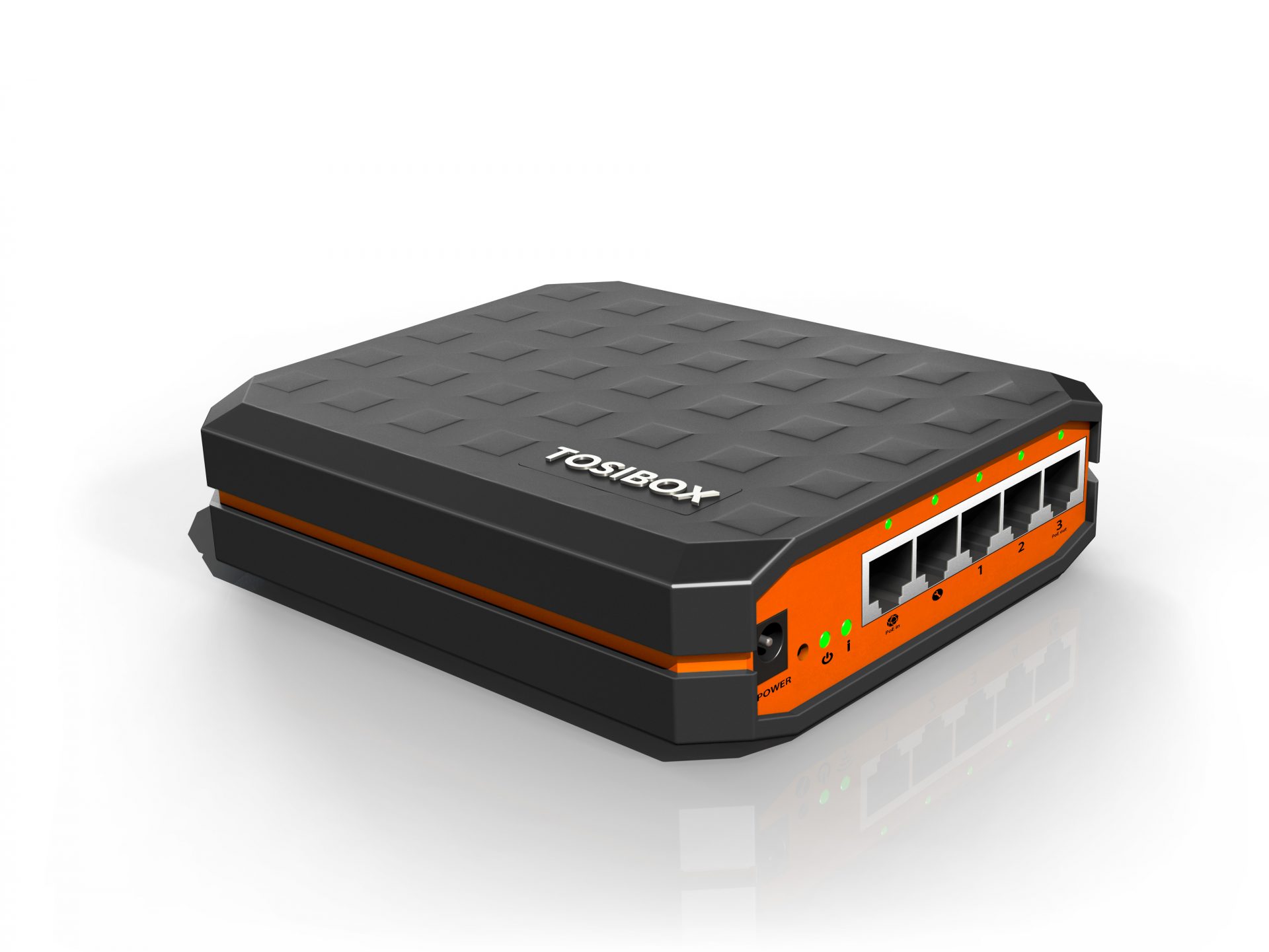

TOSIBOX® Lock 200
TOSIBOX® Lock 200是一台智慧遠端存取和網路設備,可作為安全遠端連線的端點。將IoT裝置連接至Lock,透過任何一種網際網路方式連線,即可以加密VPN連線來安全地存取IoT裝置。
友善NAT和防火牆,Lock專利的Plug & GO™連線方式讓您在不到5分鐘的時間內開箱即用,無須軟體安裝、網路設置或特殊IT技能。
連線方式
TOSIBOX® 解決方案在您和您的設備之間建立直接的點對點 VPN 通道。由無限可擴展性和靈活性的模組化元件組成。所有元件都相互兼容,並且不論是何種的網際網路網連線、網路電信商和設備。適用於內部和外部網路,而且也可以連接現代物聯網設備和舊系統。
主要特點
易用性
- VPN流量最高15M bps
- 全新流暢網頁使用者介面
- PoE功能
完全相容TOSIBOX®產品
- 使用者能任意混合連接至他們即有的系統。
工業設計
- 專為工業環境設計
- 堅固的外殼提供更好的安裝可能性,例如 在 DIN 導軌上。
LOCK 200 技術資料
接口
- 1 x USB 2.0, type A
- 1 x RJ-45 WAN connection, 10/100 Mbit/s, auto-negotiation (MDI / MDI-X)
- 3 x RJ-45 LAN connection, 10/100 Mbit/s, auto-negotiation (MDI / MDI-X)
- 1 x RJ-45 Service connection, 10/100 Mbit/s, auto-negotiation (MDI / MDI-X)
連接
- DC input power jack 5.5/2.1mm, 8 – 27 V DC ± 10%, reverse polarity protected
- PoE input 8 – 27 V DC (WAN port), PoE output
(LAN3 port, limited, 27 V / 580 mA max) - The product must be powered by limited energy according to chapter 9.4 of IEC / UL 61010-1 3rd edition
- DIN rail mounting bracket M3 threads on three sides
- Maximum power consumption is 7W
WAN連線特點
- Independent of operating systems
- Works in all Internet connections (operator independent)
- Supports HTTP proxy servers with and without authentication
- Firewall friendly
- Works with dynamic, static and private IP addresses
- Built-in firewall, NAT
- Up to 50 concurrent VPN connections
- VPN throughput up to 15 Mbit/s
行動網路連線特點
- Supported USB modems: here
- TosiOnline™ Automatic network recovery that recovers from most mobile operator and modem problems
實體特性
- 140 mm x 36 mm x 125 mm / 5.51″ x 1.42″ x 4.92″ (L x W x H)
- Weight 530 g / 1.17 lbs
- Operating temperature -20 °C … +50 °C / -4 °F … +122 °F
- Storage temperature -40 °C … +70 °C / -40 °F … +158 °F
- Operating humidity: 20 – 80% RH, non condensing
- Maximum operating altitude 3000 m / 10 000 ft
- Overvoltage category I
- Cast aluminium casing
- IP protection class IP20
內附配件
- USB extension cable
- Ethernet cable
- AC adapter: Input 100 – 240 V AC, 50/60 Hz, Output 24.0 V DC, 0.8 A
- DIN rail mounting bracket
- Cable saddle
- DC input plug
多國認證
- CE, UL, FCC
產品編碼
- TBL2US
